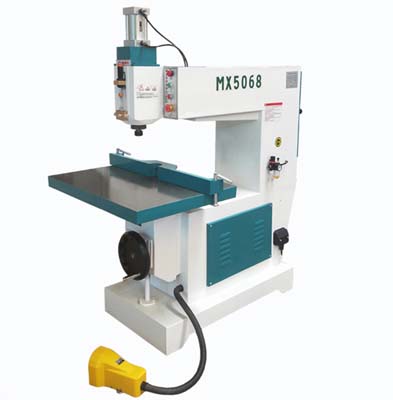

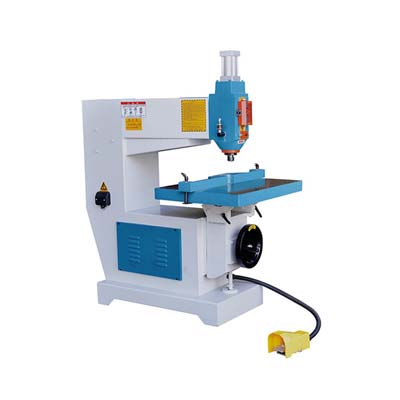

MX5068 high speed woodworking solid wood spindle moulder
MX5068 high speed woodworking solid wood spindle moulder
MX5068 woodworking routers can be installed with a variety of milling tools, chamfer polishing, contouring, round holes, irregular holes, and simple milling reliefs, etc. Preferred machine
The MX5068 table is upgraded and enlarged with a router. The groove in the middle of the table is more fitted to the shape of the human body, which saves labor and speeds up workers.
The MX5068 table is upgraded and enlarged with a router. The groove in the middle of the table is more fitted to the shape of the human body, which saves labor and speeds up workers.
Model |
MX5068 |
Motor power |
3kw/4kw |
Working table |
800*600mm |
Working table tilting angle |
0~45degree |
Working air pressure |
0.6~0.8Mpa |
Spindle speed |
18000r/min |
Working table Lifting stroke |
180mm |
Max. Processing thickness |
130mm |
Max.spindle stroke |
60mm |
Type |
Single speed or double speed type |
Spindle clamp diameter |
12.7mm |
Dimension |
1500*900*1700mm |
Weight |
480kg |
