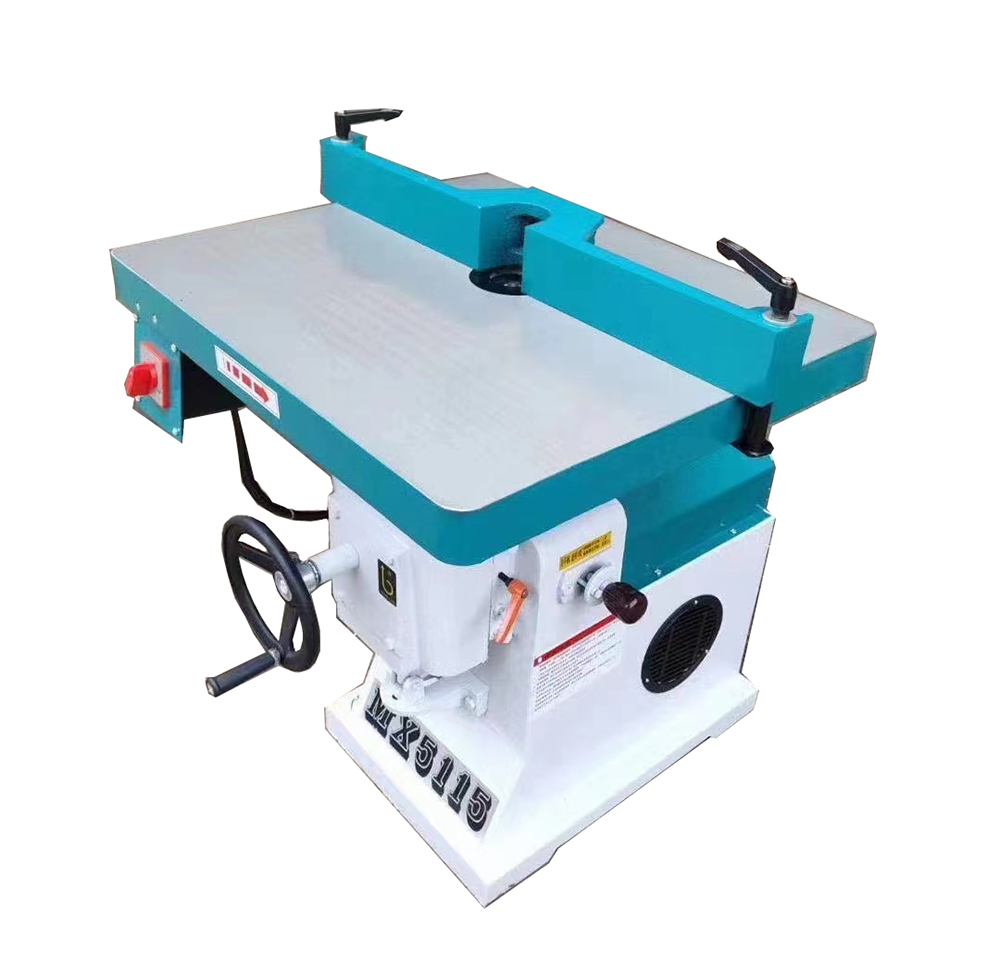

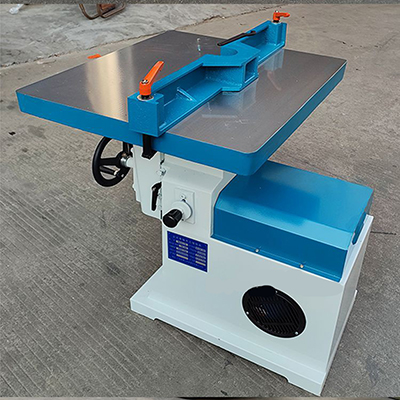

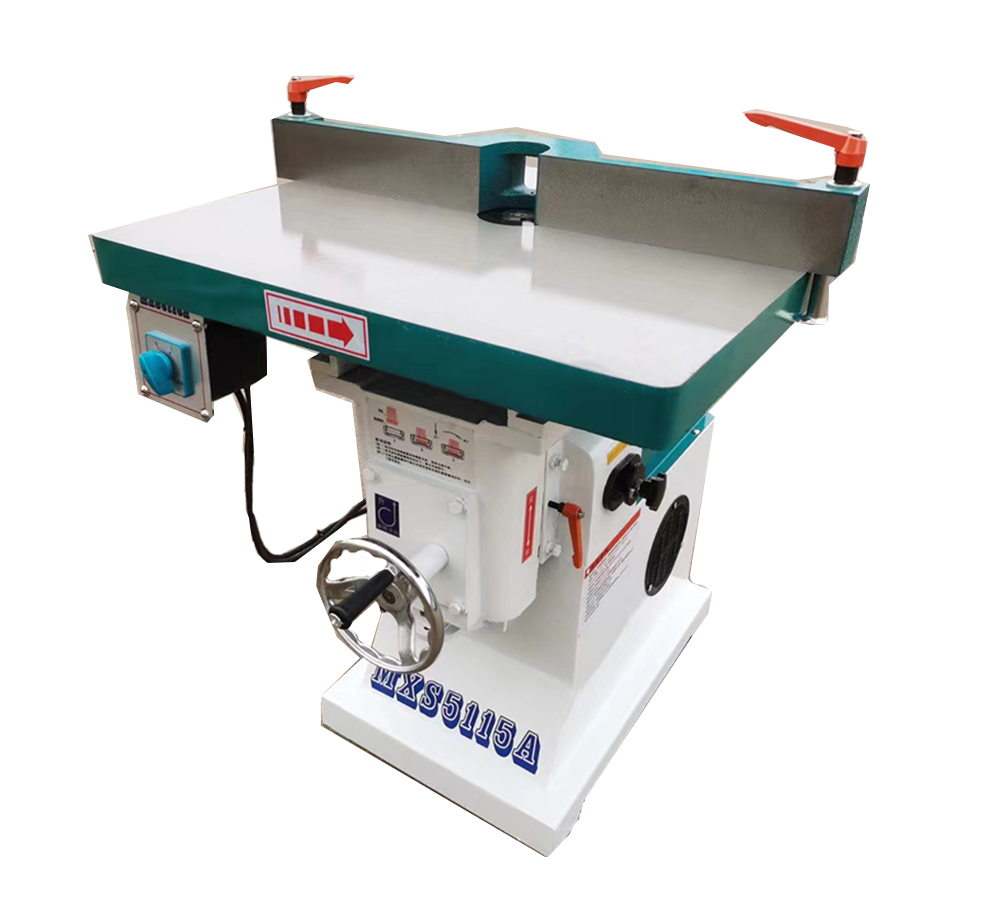

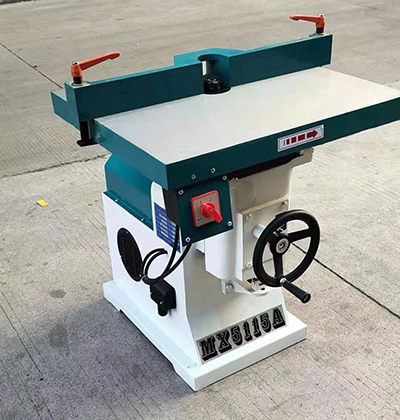

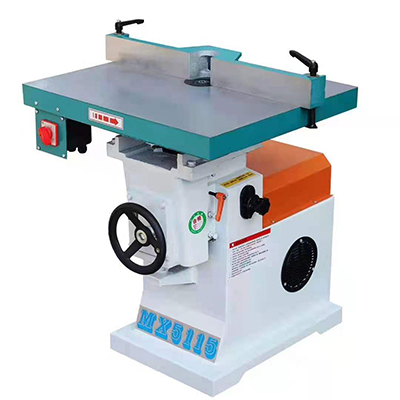

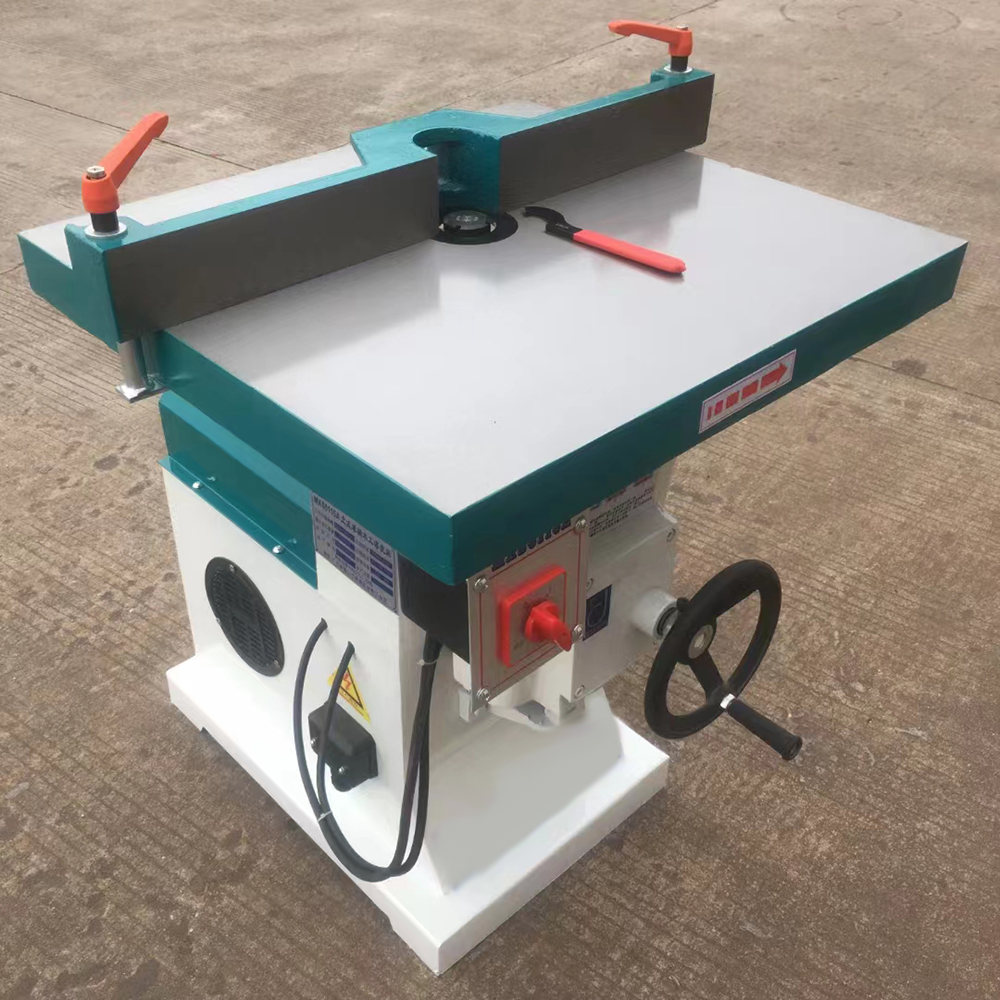

MX5115 widely used easy operational woodworking milling router machine
MX5115 widely used easy operational woodworking milling router machine
MX5115 is applied to milling planes, grooves, teeth, threads and spline shafts, milling machines can also process more complex curved surfaces,trimming with high efficiency and It can be used to install all kinds of boring and milling tools, chamfering the workpiece, cutting straight grooves, straight lines, sliding the table to the T-slot, etc. It is the first choice for solid wood,Acrylic and panel furniture.
|
Model |
MX5115 |
|
Product name |
Vertical single axis milling machine |
|
Table tilt angle |
45 degree |
|
Knife handle diameter |
6.3/12.7mm |
|
Spindle speed |
18000r/min |
|
Table size |
640*580mm |
|
Motor power |
2.2kw/3Kw |
|
Max. processing thickness |
50mm |
|
Elevator travel |
100mm |
|
Dimension |
780*710*900mm |
|
Weight |
150kg |
|
Customized is acceptable |
|
